Hardened Tempered Steel Strips


What is Hardening & Tempering?

These strips are stocked and supplied in various grades, in different widths and thicknesses. We offer the following grades in hardened tempered steel strips.

Chemical Composition
Grade %C %Si %Mn %S %P %Cr %V %Ni
C-65 0.60 -0.70 0.10.-0.35 0.50-0.65 0.05 0.05 - - -
C-80 0.75-0.85 0.10.-0.35 0.50-0.80 0.05 0.05 - - -
C-98 0.90-1.05 0.10.-0.35 0.50-0.80 0.05 0.05 - - -
50Cr4V2 0.45-0.55 0.10.-0.35 0.60-0.90 0.05 0.05 0.90-1.2 0.15-0.30 -
75Ni8 0.75-0.85 0.10.-0.35 0.50-0.80 0.05 0.05 - - 1.72-2.10
Physical properties
Grade Vickers Hardness (HV) Yield Stress N/mm2 (Min) Tensile Strength N/mm2 Elongation %
C-65 350-425 1030 1180-1420 6
C-80 350-475 1080 1180-1570 6
C-98 475-540 1470 1570-1760 6
50Cr4V2 555-670 1760 1880-2360 4
Range
Width: 6 mm to 550 mm.
Thickness: 0.05 mm to 4 mm.
Hardness: 30 HRC Min to 58 HRC Max.
Surface Finish: Bright polished, Blue, Brown & Grey.
Edges: One or both side edge round, square & chamferd & sheared edge.

Form of supply: Materials are supplied in coil form. If any special I.D. & O.D. requirements are there, that can be maintained. Further, material can also be supplied in cut lengths, if required by the customer.

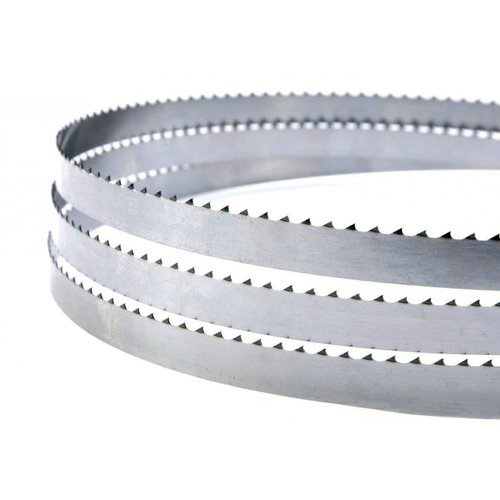

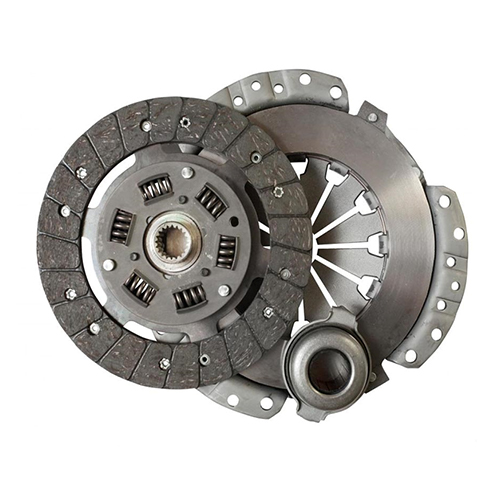

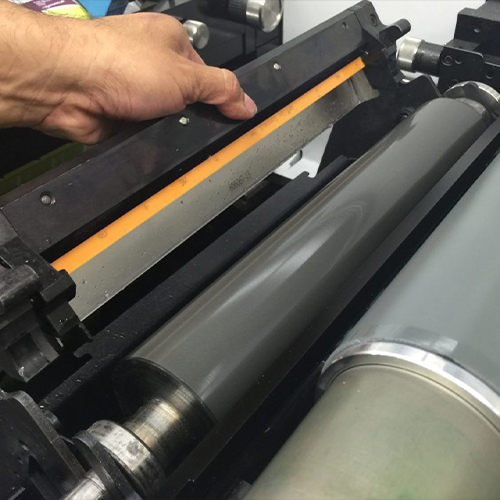

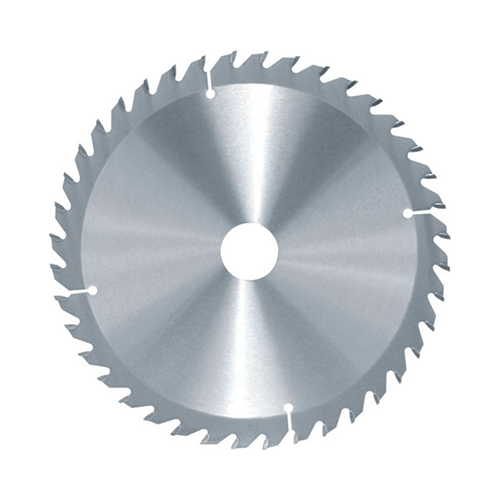

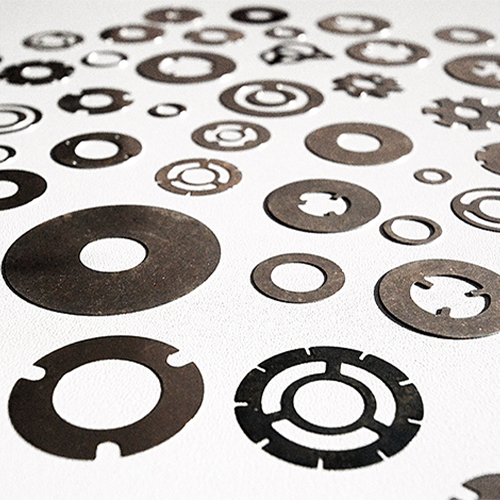

Applications: Flat springs for automobile clutches, masonary and agricultral tools, gang saw blades for marble cutting, doctor blades, band knives, drop pins for textile industries, wood working saws, carpentary tools, coil springs, flapper values, etc.

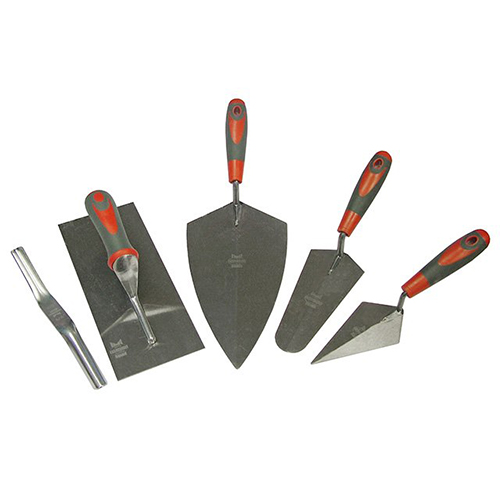

Masonary Tools
Coil Spring

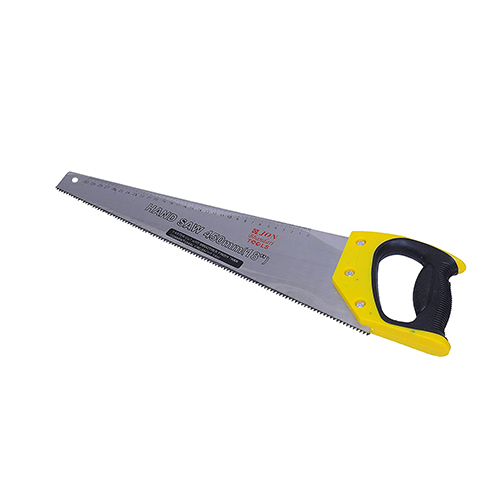

Hand Saws
Knives

Masonary
Coll
Saw
Knive


Please get in touch right away and give us an idea about your requirements. We will send you full details and a proposal on no-obligation basis as soon as possible.
